GR Series
Regulator
Description:

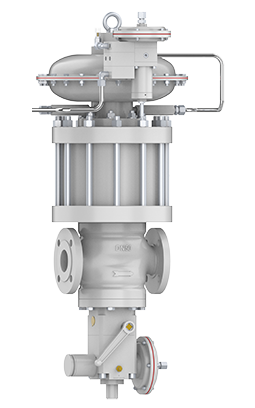

The GR series pressure regulator is an indirect-acting regulator equipped with the DGP300 series high-performance pilot, is suitable for low and medium pressure.
The regulators are widely used in both commercial and industrial installations using Natural Gas, LPG and other non-corrosive gases.
contact us The GR series pressure regulator is an indirect-acting regulator equipped with the DGP300 series high-performance pilot, is suitable for low and medium pressure.
The regulators are widely used in both commercial and industrial installations using Natural Gas, LPG and other non-corrosive gases.
FEATURES
Model | GR |
Nominal diameter | DN25,DN50,DN80,DN100,DN150,DN200 |
Connections | DN25/DN50/DN80/DN100/DN150/DN200-PN16/25&Class150, PN according to EN1092-2, Class according to ASME B16.5 |
Maximum inlet pressure | 20bar |
Outlet pressure regulation range | from 15 to 13000mbar |
Accuracy class AC | up to 1 |
Lock-up pressure class SG | up to 2.5 |
Minimum working differential pressure | 0.5bar |
Working temperature | -20℃-+60℃ |
Features | ● High flow coefficient. |
